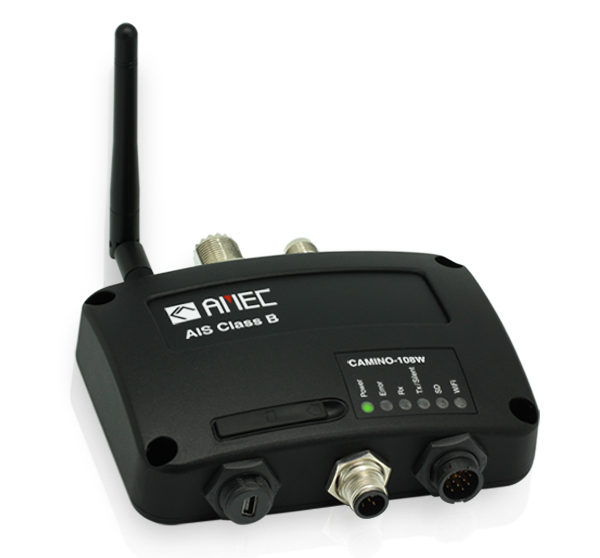

The new CAMINO-108W is featuring enhanced Wi-Fi performance. When serving as Access Point, CAMINO-108W is able to connect to 10 mobile devices simultaneously. It can be also configured as Client to share an existing Wi-Fi network. The user-friendly software interface provides easy-to-understand setup menus for AIS as well as Wi-Fi related functions.
CAMINO-108W remains true to itself as a reliable AIS class B transceiver: The leading software defined radio technology inside Camino-108W provides high performance to ensure reliable transmission and reception of AIS messages. Its NMEA2000, NMEA0183 and waterproof USB port enable simple integration with chart plotters and PCs. Built-in SD card slot makes storage of AIS data easier than ever.
The new CAMINO-108W, an upgraded AIS platform with outstanding Wi-Fi performance, is a even better companion for your voyage.
Additional information
APPLICABLE STANDARDS
EN 301 489-1 V2.1.0 / EN 301 489-3 V2.1.0 : IEC 60945 Ed. 4:2002
EN 301 489-1 V2.1.0 / EN 301 489-17 V3.1.0 : IEC 62287-1 Ed. 2:2010
EN 301 843-1 V2.1.1 / EN 301 843-2 V2.1.1 : IEC 61108-1 Ed. 2:2003
EN 300 440 V2.1.0 : EN 300 328 V2.1.0
EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 : EN 300 328 V2.1.0
VHF TRANSCEIVER
Frequency Range : 156.025 MHz ~ 162.025 MHz
Channel Bandwidth: 25 KHz
Modulation : GMSK / FM
Data Rate : 9,600 bps
Number of AIS Transmitter : 1
Number of AIS Receiver 2 (one time-shared between AIS and DSC)
Number of DSC Receiver 1 (time-shared between AIS and DSC)
AIS Channel 1 CH 87B (161.975 MHz)
AIS Channel 2 CH 88B (162.025 MHz)
Tx Power Output 2 Watt (33 dBm ± 1.5 dB)
Rx Sensitivity < -107 dBm @ 20% PER
DSC RECEIVER
Modulation : 1,300 Hz / 2,100 Hz FSK
Data Rate : 1,200 bps ± 30 ppm
Spurious Response Rejection : ≧ 70 dB for signal @ -104 dBm; BER ≦ 1 %
Blocking : ≧ 84 dB for signal @ -104 dBm; BER ≦ 1 %
Power (green) : System power on / off
Error (red) : MMSI not set / BIIT error
Rx (green) : Receiving AIS data
Tx/Silent (green/red) : Transmitting AIS data / Silent mode
SD (green) : Accessing SD card
Wi-Fi (green) : integrated Wi-Fi connecting
CONNECTION INTERFACE
GPS Antenna Connector : TNC (Female)
VHF Antenna Connector : SO-239 (Female)
NMEA2000 : Standard connector
NMEA 0183 (RS-422) : Support two NMEA0183 interfaces
Baud rate configurable (default 38,400 bps)
Separate Tx/Rx baud rate
Standard IEC 61162-1 / IEC 61162-2 sentences
Silent Mode Setting : Set by dedicated pins in NMEA0183 connector
USB : Mini type, waterproof
Wireless Connection : IEEE 802.11 b/g/n
