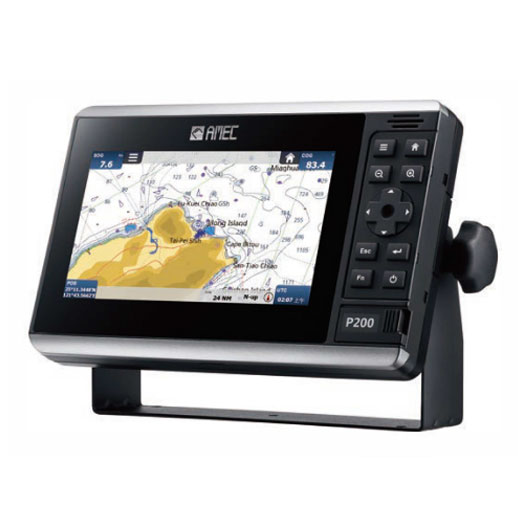

P200 AIS Navigator Chart Plotter with integrated Class B CS Transponder

Description

  • Standard supplied with a global base chart, with optional C-MAP 4D chartting support
  • IP67, designed for rough marine application
  • Pinch-to-zoom with multi-touch
  • Hi-res sunlight readable display
  • Backlit waterproof button and arrow keys
  • Dual Micro SD card slots
  • NMEA 2000 & NMEA 0183

Additional information

✅ Main Features

Built-in 7” LCD Display (1024×600, 850 nits brightness) – clear visibility in all conditions

Integrated GPS Receiver – 72 channels, fast fix < 60s

Wi-Fi Option – wireless connection for chartplotters or software updates

Micro-SD Slot – for C-Map charts & firmware updates

Dual AIS Receiver + 1 Transmitter – ensures reliable ship tracking

DSC Receiver (shared) – complies with maritime safety standards

NMEA 0183 / NMEA 2000 / Ethernet Support – versatile connectivity

📡 Radio Specifications

Frequency Range: 156.025 – 162.025 MHz

Transmit Power: 2W (33 dBm ±1.5 dB)

Modulation: GMSK / FM

AIS Channels: CH87B (161.975 MHz) & CH88B (162.025 MHz)

Data Rate: 9,600 bps

Receiver Sensitivity: < -107 dBm

🌍 GPS Receiver

Compliant with IEC 61108-1

72 channels, 1Hz update rate

Time to First Fix: < 60 seconds

🔌 Connectivity

Antenna Ports: VHF (SO-239), GPS (TNC)

NMEA 0183 (12-pin) / NMEA 2000 (5-pin)

Optional Ethernet (RJ45)

Power Input: 12–24V DC n

💡 Display & Interface

Display Size: 7" TFT LCD

High Brightness: 850 nits for daylight readability

Keypad: Dedicated function buttons + power key

Backlight: White LED

🌊 Durability

Waterproof Rating: IP67 (with card door closed)

Operating Temp: -15°C to +55°C

Humidity: 93% @ 40°C

Vibration & Shock: IEC 60945 compliant

📐 Size & Weight

Dimensions: 233.6 x 150 x 77.5 mm

Weight: 1.03 kg (without Ethernet)

📶 Wi-Fi (Optional)

Transmit Power: 18 dBm

Frequency: 2.4 GHz (2412 – 2472 MHz)

Antenna: 2.8 dBi flex antenna
