The SeaGuard II DCP (Acoustic Doppler Current Profiler) measures currents and can be extended with wave direction, oxygen, conductivity, turbidity, temperature, and serial sensors.
It features innovative development of the acoustic profiling capacity and an exceptional ability to collect high-quality current information on moving and tilting moorings.
Available as a self-recording current meter, it also integrates unique real-time features to meet your application needs.
The SeaGuardII Acoustic Doppler Profiler, is a smart data hub that combines the SeaGuard electronics with the advanced management firmware of the Aanderaa SmartGuard data hub.
The DCP is a 600kHz frequency profiler with multi-sensor capability for acoustic doppler profiling. By design, we offer increased deployment time, optimized configuration flexibility, and unique features to cope with demanding upper ocean environments.
Optional parameters are available using the Aanderaa range of smart sensors that include temperature, pressure, conductivity, oxygen, wave, tide, and turbidity. In addition, the SeaGuard II Profiler has 4 analog inputs, 2 serial ports with power control and direct connection for real-time data transmission output.

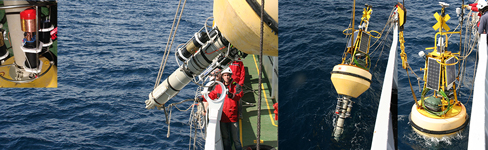

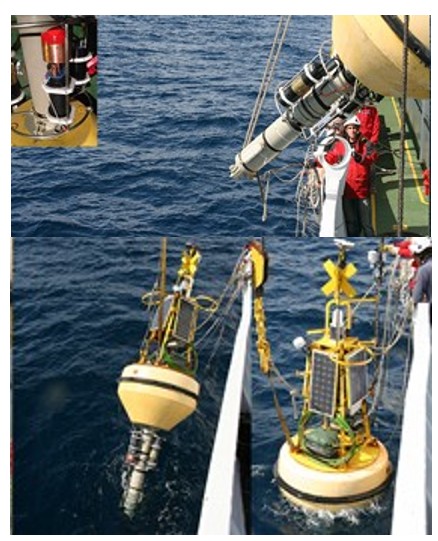

Applications:
Buoy mounted
Hyd/Met systems
In-line mooring line with upside down possibility
Two DCPS sensors connected to one instrument
Ocean observatory with sensor string
Bottom mounted
Multiparameter ocean observations
Additional information
Performance
Velocity Measurement:
Frequency: 600 kHz
Range: Up to 80m (mode dependent)
Velocity Range:
Broadband: 0–400 cm/s
Narrowband: 0–500 cm/s (up to 1000 cm/s with low tilt)
Accuracy: ±1% or 0.3 cm/s
Resolution: 0.1 cm/s
Ping Rate: Up to 10 Hz
Beam Setup:
4 beams, 25° angle, 2.5° width
Up to 3 velocity columns measured simultaneously
Max. Cells: 150 (75/50/25 per column)
Echo Intensity
High precision and resolution:
Dynamic range >50 dB
Resolution & precision: <0.01 dB
Orientation Sensors
Solid-state tilt & compass
Pitch/Roll: ±90°, Heading: ±180°
Accuracy:
Tilt: <0.5° RMS
Heading: <2° RMS
Resolution: <0.1°
Temperature Sensor
Range: -4°C to +40°C
Accuracy: ±0.05°C
Resolution: 0.001°C
Data & Power
Internal storage: 2GB SD card
Remote access: Cable, radio, GPRS, Iridium
Power supply: 12–30V external / internal battery options (Alkaline or Lithium)
